HTZ-300-8N型 調心調平工作臺(多維可調工作臺)【新款】

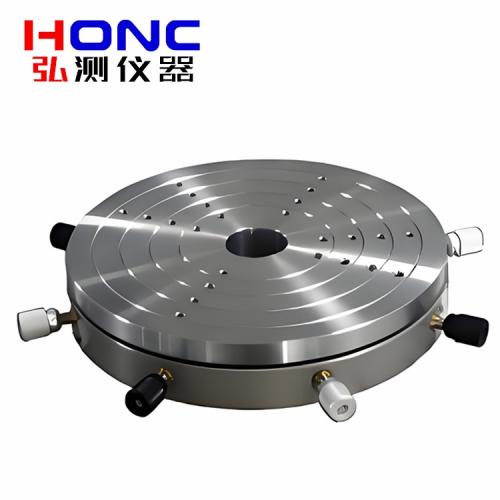

圖片僅供參考,不含底座
技術指標 Technical indicators
● 工作臺直徑:φ300mm;
● 臺面高度:33.5mm;
● 主體材質:不銹鋼;
● 8旋鈕調節配置:4旋鈕對中調節,4旋鈕水平調節;
● 對中調節(平移)范圍:±3mm;
● 水平調節范圍:±1°;
● 轉臺安裝孔規格:M6;
● 頂部安裝孔規格:M6,120°同心圓分布;
● 最大承重:50KG;
● 自重:15.5KG;
● Workbench diameter: φ300mm;
● Table height: 33.5mm;
● Main body material: stainless steel;
● 8-knob adjustment configuration: 4-knob centering adjustment, 4-knob horizontal adjustment;
● Centering adjustment (translation) range: ±3mm;
● Horizontal adjustment range: ±1°;
● Turntable mounting hole specifications: M6;
● Top mounting hole specifications: M6, 120° concentric circle distribution;
● Maximum load-bearing capacity: 50KG;
● Weight: 15.5KG;

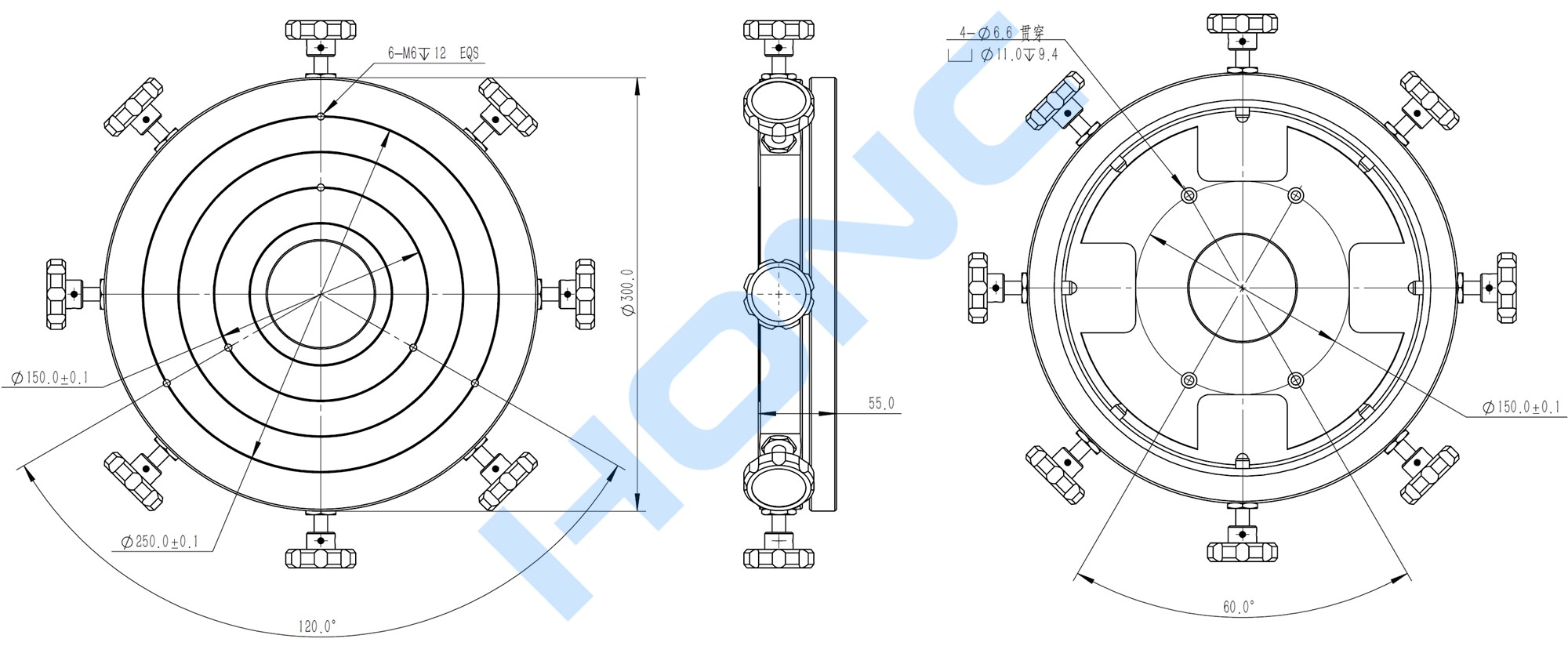

上圖為定制尺寸,僅供參考
