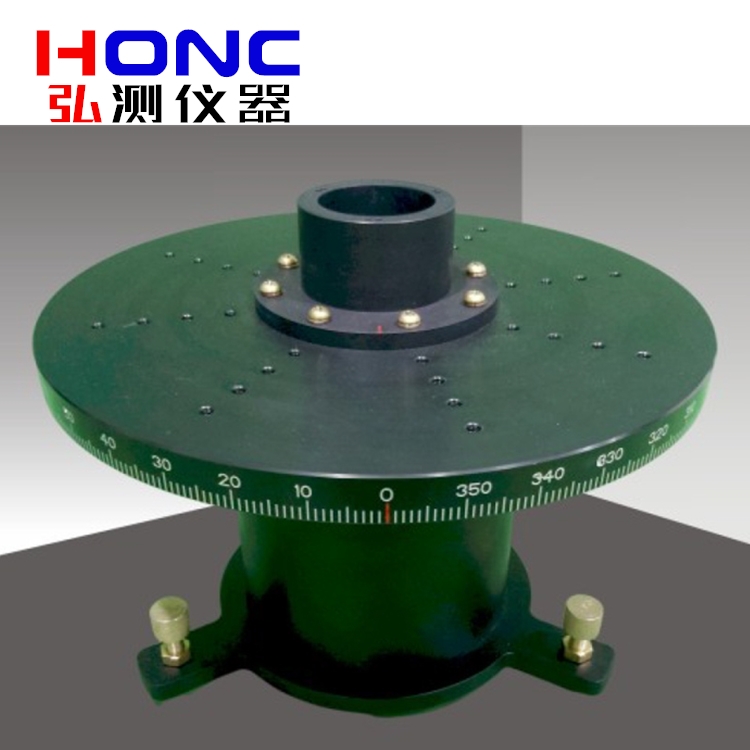

ST-400A型 單軸無磁測試轉臺【慣性導航測試轉臺】
產品簡介 Product introduction
慣性導航測試轉臺系統/Inertial Navigation Test Turntable System
慣導測試轉臺根據需要，有電動和手動兩種驅動方式，按結構可分為單軸、雙軸和三軸轉臺等，具有位置、速率、搖擺、跟蹤等多種功能，用于各種慣性器件、慣性組合、隨動跟蹤裝置等的地面測試。
The inertial navigation test turntable,according to the needs, has two driving modes: electric and manual. According to the structure, it can be divided into single-axis, dual-axis and three-axis turntables. It has multiple functions such as position, rate, swing and track-ing, and is used for ground testing of various inertial devices, inertial units,follow-up tracking devices, etc.

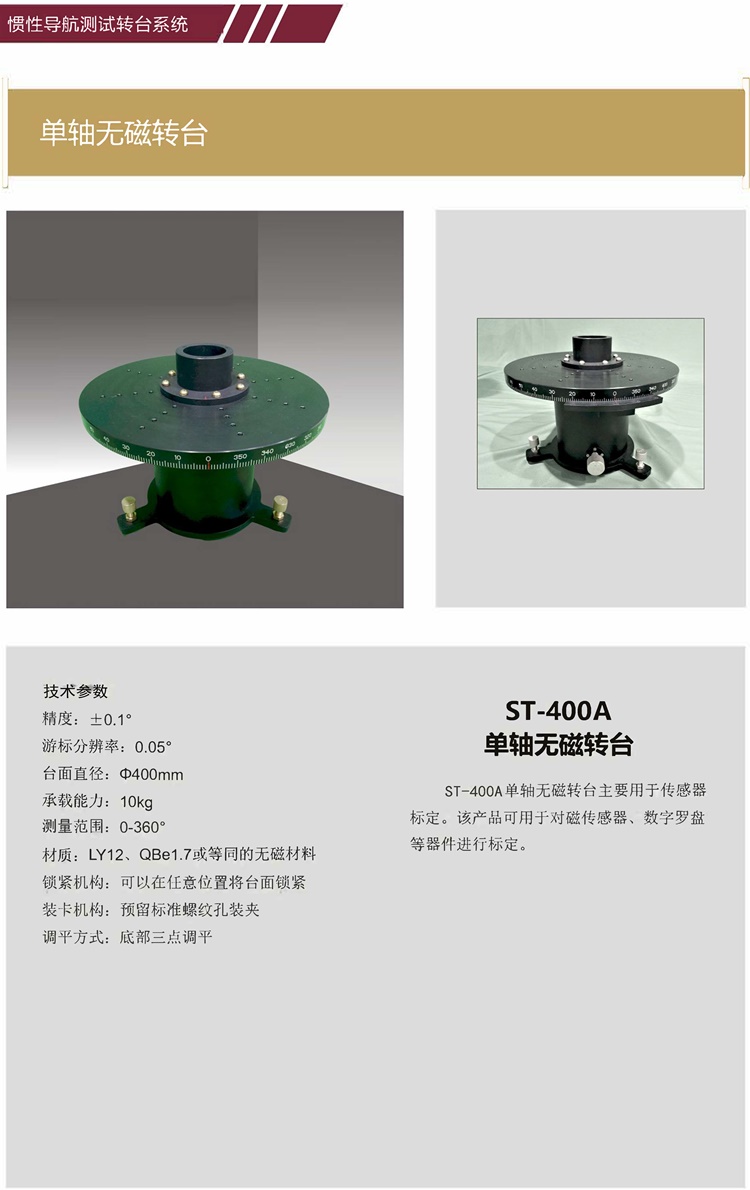

單軸無磁轉臺主要用于傳感器標定。該產品可用于對磁傳感器、數字羅盤等器件進行標定。
Single-axis non-magnetic turntable is mainly used for sensor calibration. This product can be used to calibrate magnetic sensors, digital compasses and other devices.
技術指標 Technical indicators
1.負載重量/Load Weight：10Kg；
2.臺面直徑/Table Diameter：Φ400mm；
3.臺面平面度/Table Flatness：0.02mm；
4.臺面跳動/Table Runout：0.02mm；
5.軸線回轉精度/Rotary Accuracy Of Axis：±3″；
6.精度/角位置定位誤差/Positioning Error Of Angular Position：±0.1°；
7.角位置定位重復性/Positioning Repeatability Of Angular Position：±0.1°；
8.游標分辨率/Cursor resolution：0.05°；
9.測量范圍/Measuring range：0-360°；
10.材質/Material：LY12、QBe1.7或等同的無磁材料/LY12, QBe1.7 or equivalent non-magnetic material；
11.鎖緊機構/Locking mechanism：可以在任意位置將臺面鎖緊/The tabletop can be locked in any position；
12.裝卡機構/Card loading mechanism：預留標準螺紋孔裝夾/Reserved standard threaded holes for clamping；
13.調平方式/Leveling method：底部三點調平/Three-point bottom leveling；
